Union Find Algorithm

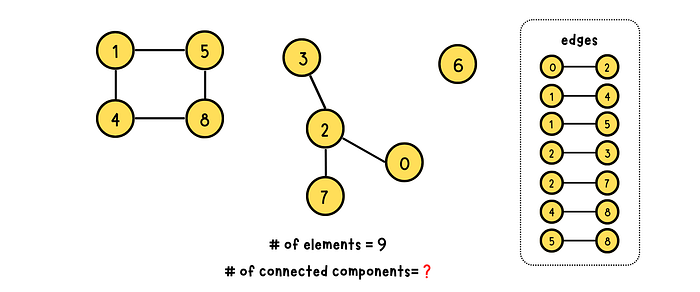

An algorithm that implements find and union operations on a disjoint set data structure. It finds the root parent of an element and determines whether if two elements are in the same set or not. If two elements are at different sets, merge the smaller set to the larger set. At the end, we can get the connected components in a graph.

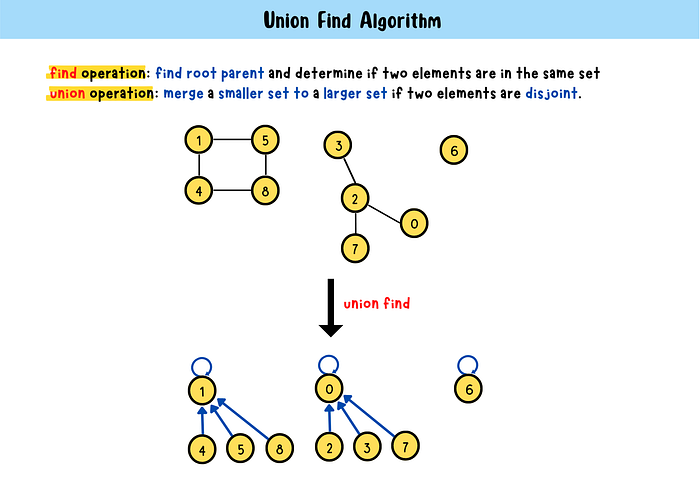

union find algorithm summary card

Table of Contents
· Disjoint Set Data Structure
· Path Compression
· How Does Union Find Algorithm Work?
· Graphical Explanation
· Code Implementation
  ∘ Complexity
  ∘ Golang
  ∘ Python

Disjoint Set Data Structure

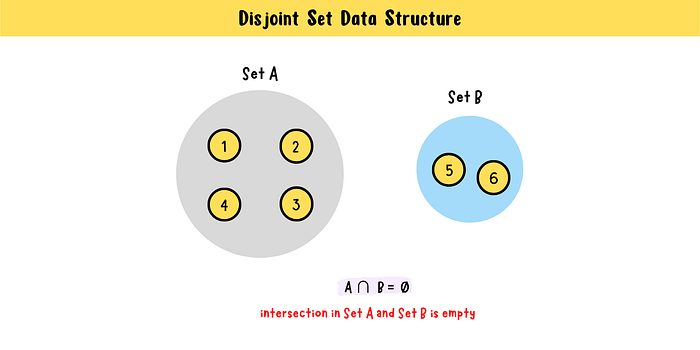

Two or more sets have no element in common are called disjoint sets. Disjoint set data structure is also referred to as union find data structure because of its union and find operations.

disjoint set

Disjoint set data structure supports three operations:

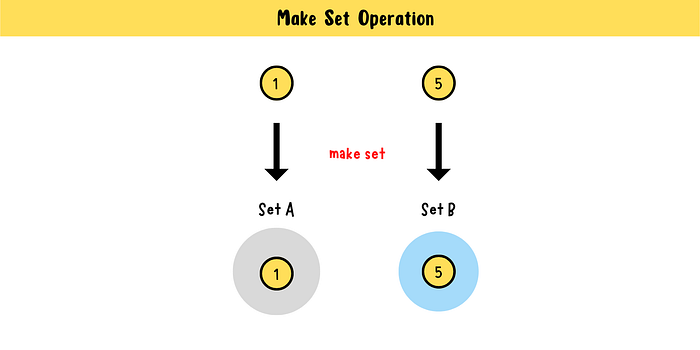

1. Make Set: create a new disjoint set contains only the given element.

make set

2. Find: determine which subset a given element belongs to. It is used to decide whether if two elements are disjoint or not.

find

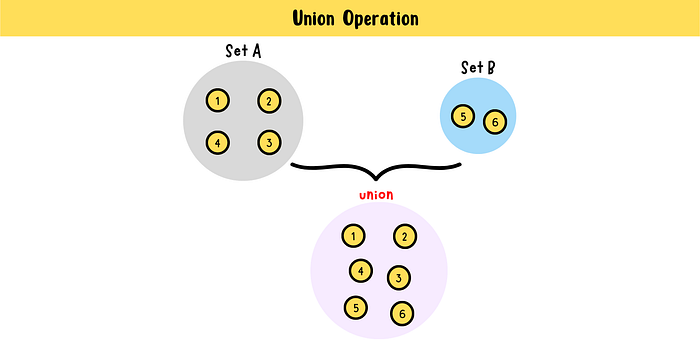

3. Union: merge two disjoint sets to a single disjoint set.

union

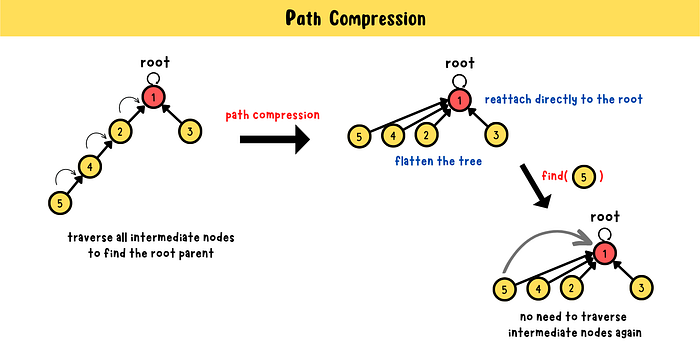

Path Compression

Path compression is a way to flatten the structure of the tree to make find operation more efficient. Find operation is used to find the root parent for a node. Without path compression, we have to travel upward the tree toward the root. The beauty of path compression is that we can find directly the root parent by reattaching visited nodes to the root.

path compression

How Does Union Find Algorithm Work?

Union find algorithm performs the find operation to find a given element’s root parent and determine whether if two elements are in the same subset or not. If the two elements are in the same subset, they are already connected. Otherwise, they belong to different sets. Implement the union operation to merge the two disjoint sets to a signal set.

Graphical Explanation

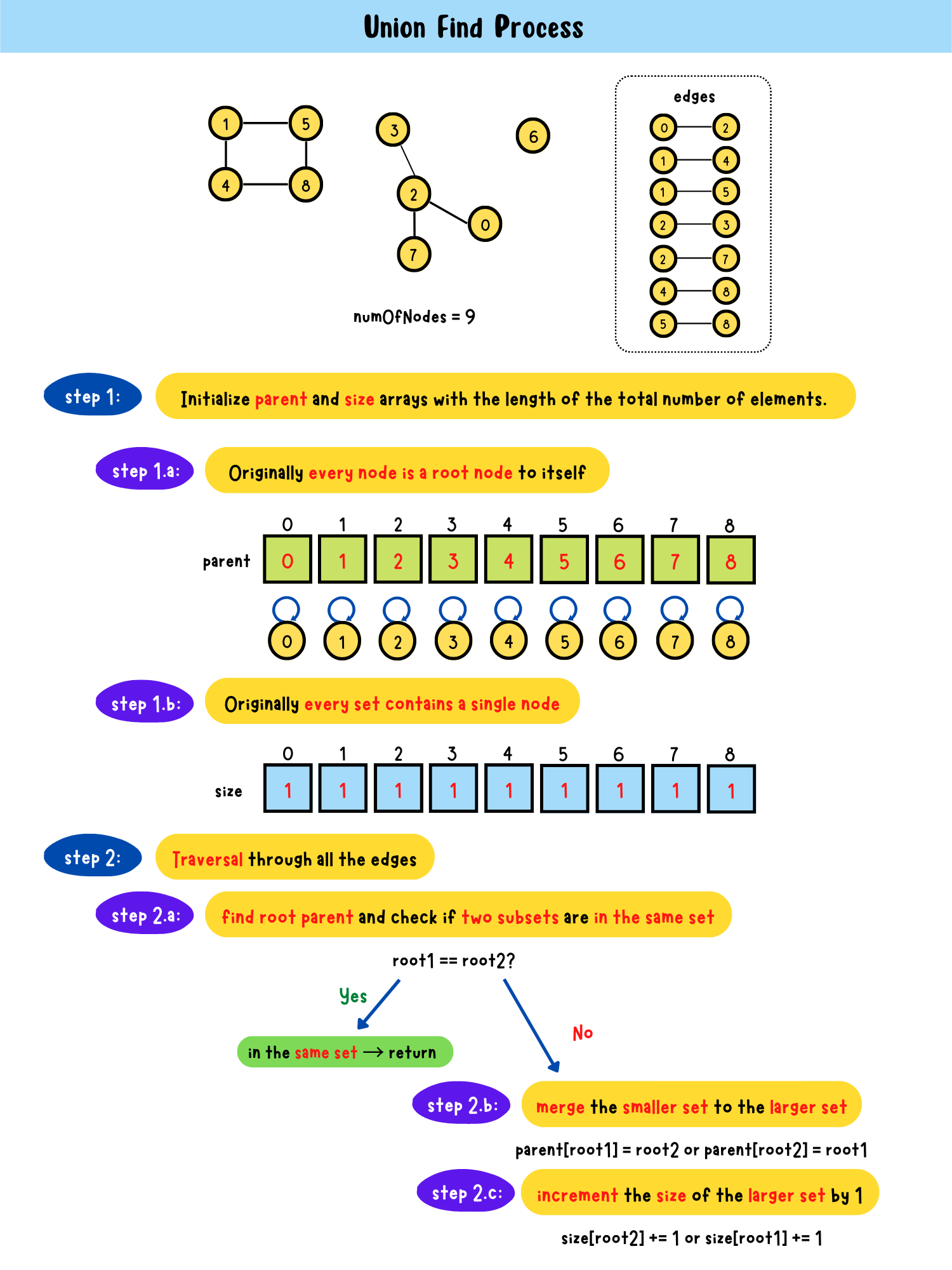

• step1: Initialize parent and size arrays with the length of the total number of elements.

parent: store a node's root parent
size: store the total number of elements in a subset
step1.a: originally every node is a root node to itself
         parent[i] = i
step1.b: originally every set contains a single node
         size[i] = 1

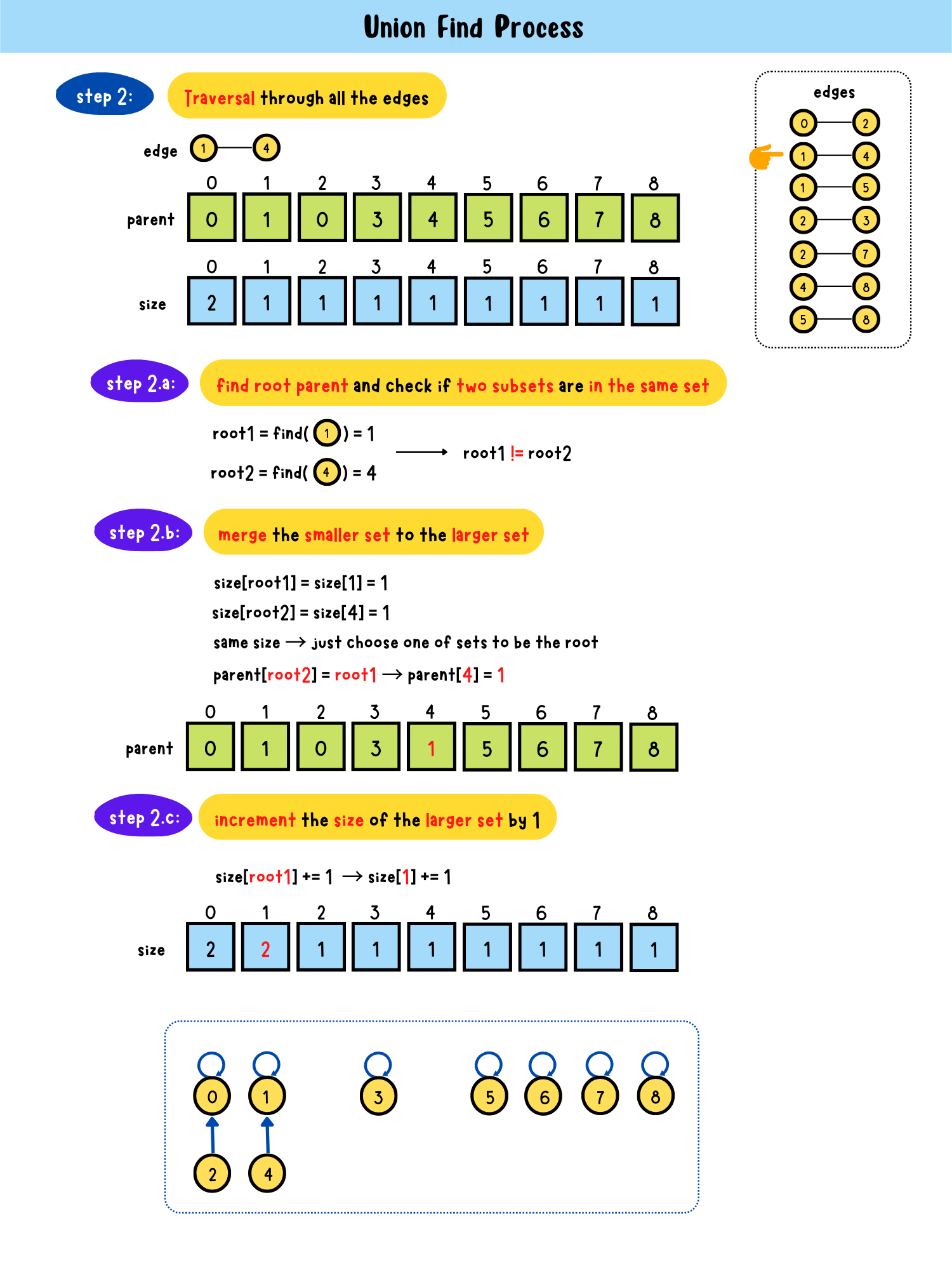

• step2: Traversal through all edges

step2.a: find root parent and check if two subsets are in the same set
root1 == root2?
- Yes → in the same set → return
- No → step2.b
step2.b: merge the smaller set to the larger set
parent[root1] = root2 or parent[root2] = root1
step2.c: increment the size of the larger set by 1
size[root2] += 1 or size[root1] += 1

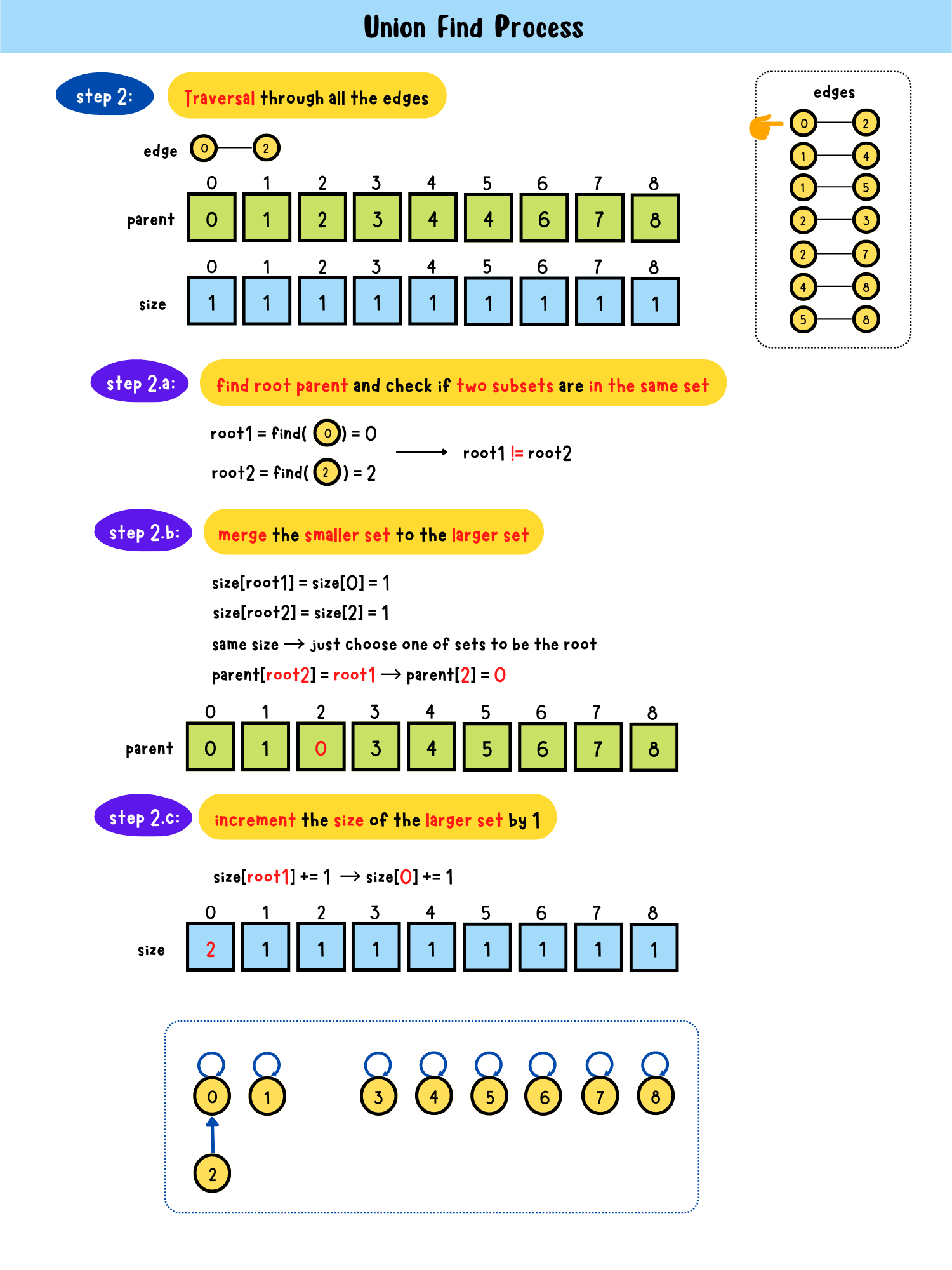

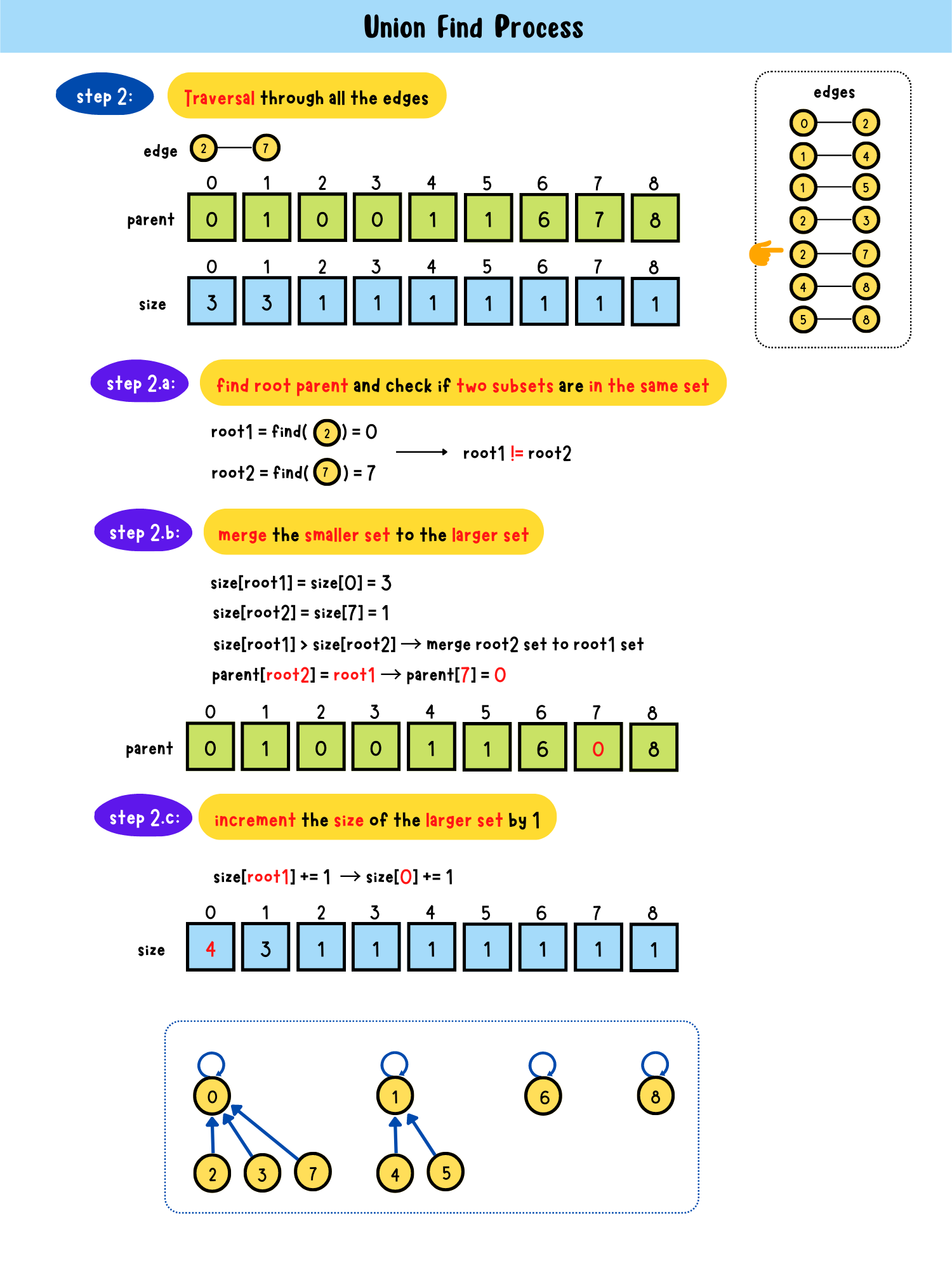

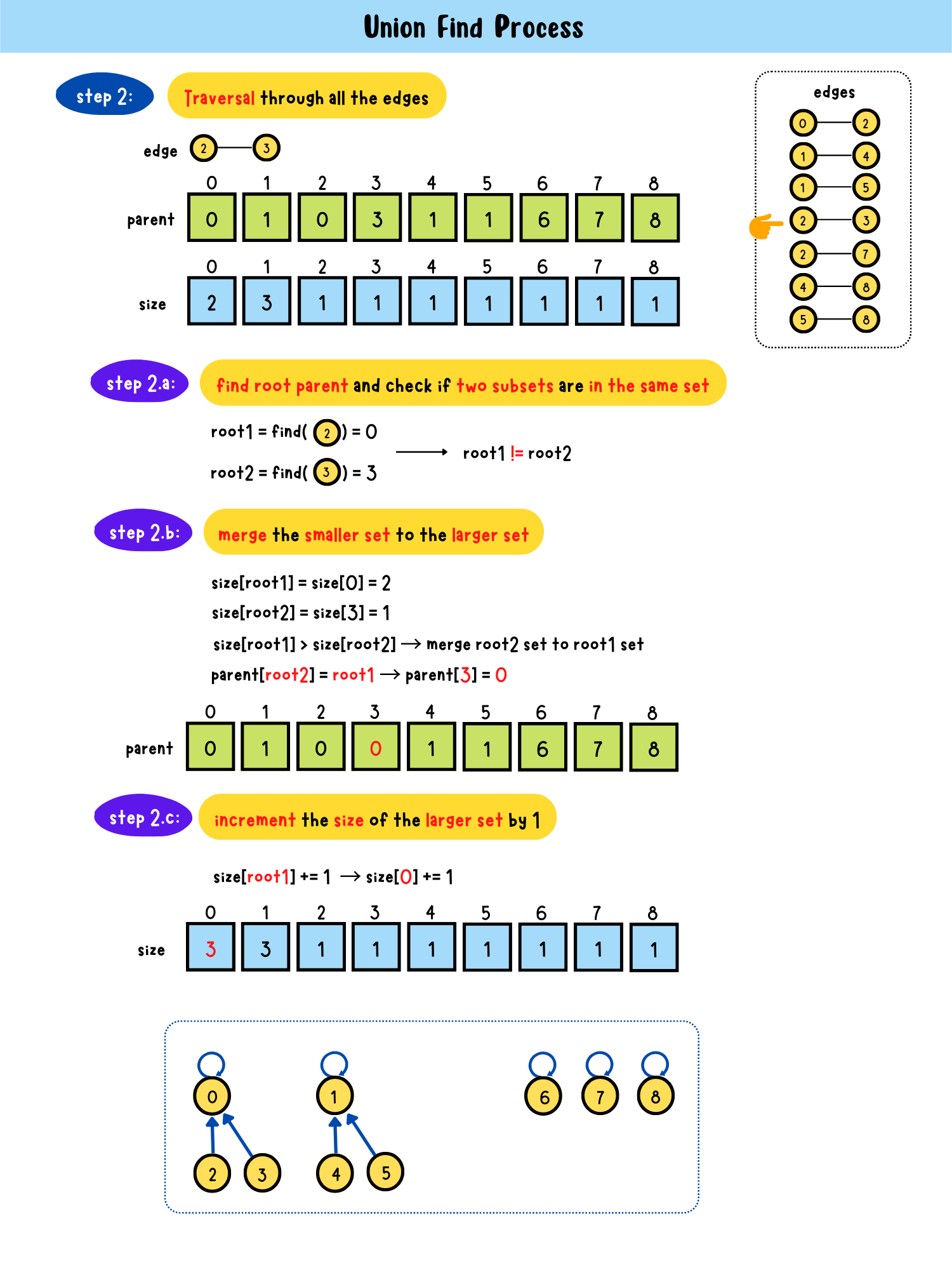

1, 2

3, 4

5, 6

7, 8

Code Implementation

Complexity

Time: O(nlog(n))
Space: O(n) parent and size array
n: the total number of nodes in the given graph

• Find operation
  Time: O(log(n)) log(n) is the height of the tree
  Space: O(1)
• Union operation
  Time: O(1)
  Space: O(1)

Golang

Python

You can access the source code here.

LeetCode Problems:

• 547. Number of Provinces
• 200. Number of Islands

Reference:

• Disjoint-set data structure
