Merge Sort Algorithm

3 min readSep 20, 2022

A non in-place sorting algorithm that recursively cuts the array into halves until every subarray has only one element. Then it continuously merges smaller sorted subarrays to a larger one until it builds up a single sorted array. This algorithm runs in O(nlog(n)) time.

Table of Contents· How Does Merge Sort Algorithm Work?
· Graphical Explanation
· Code Implementation
  ∘ Complexity
  ∘ Pseudocode
  ∘ Golang
  ∘ Python

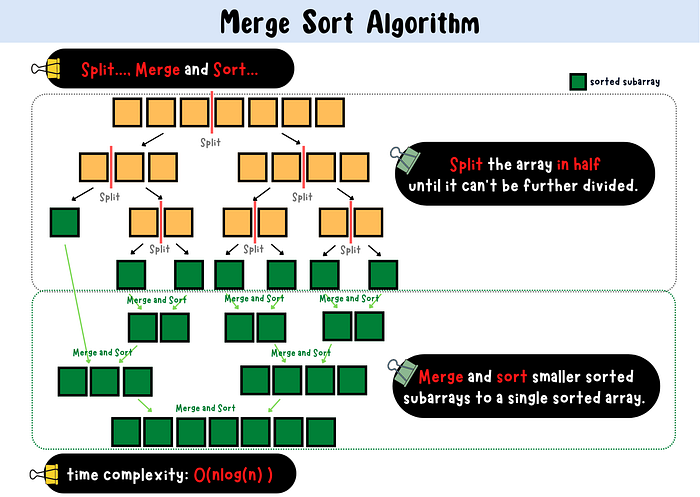

How Does Merge Sort Algorithm Work?

Split…, merge and sort….

Merge sort algorithm keeps splitting the array in half until it reaches a singleton array(base case to stop the recursion). After that, it merges the subarrays in a sorted manner until the whole array is combined to a single sorted array.

This algorithm uses Divide and Conquer strategy to divide an array into subarrays. When the subarray is sorted, it combines the smaller sorted subarrays to a larger one. Finally, the whole array is sorted.

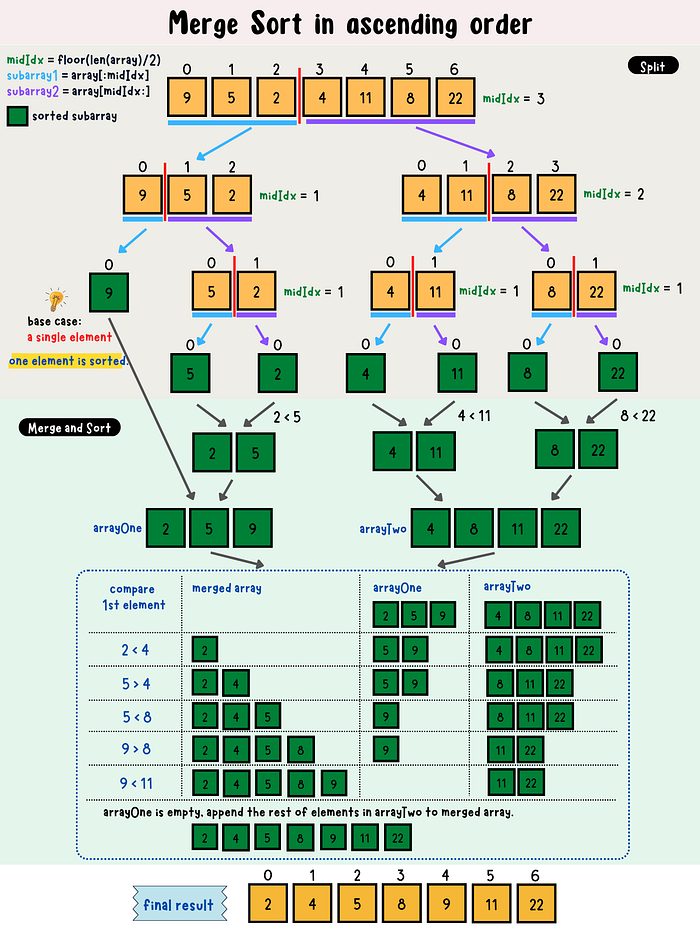

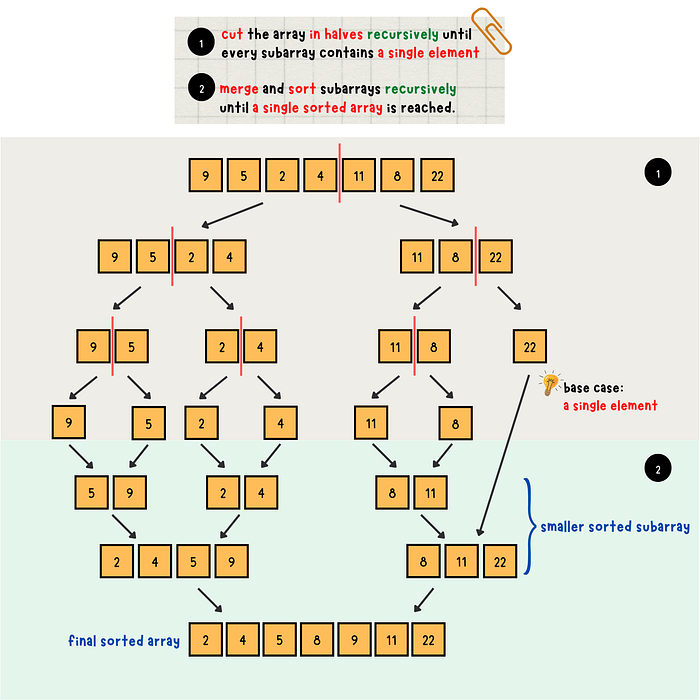

Graphical Explanation

step1: Split the array recursively until it has only one element left.
step2: Merge and sort the subarray recursively until the whole array is sorted.

Code Implementation

Complexity

Time: O(nlog(n))
Space: O(n)
n: the total number of elements in the input array

Pseudocode

mergeSort(array)

# base case
if len(array) <= 1:
   return# find middle index
midIdx = len(array)/2leftSortedArray = mergeSort(array[:midIdx])
rightSortedArray= mergeSort(array[midIdx:])# merge two smaller sorted subarray to a larger sorted array
merge(leftSortedArray, rightSortedArray)

merge(arrayOne, arrayTwo)

merged = []while arrayOne and arrayTwo is not empty:
   # compare the first element, add the smaller one to the merged array
   if arrayOne[0] < arrayTwo[0]:
       append arrayOne[0] to merged array
       remove the front element in the arrayOne
   else:
       append arrayTwo] to merged array
       remove the front element in the arrayTwoappend the rest of elements in arrayOne or arrayTwo to the merged array

Golang

Python

You can access the source code here.
